Azure Traffic manager



What is Azure Traffic Manager ‘

Azure Traffic Manager allows us to control the distribution of user traffic for service endpoints which resides in different datacenters.

Service endpoints supported by Traffic Manager including Azure VMs, Web Apps, and cloud services. We can also use Traffic Manager with external, non-Azure endpoints

What is the Azure Traffic Manager benefits ?

  • Improve availability of critical applications

Traffic Manager delivers high availability for our applications by monitoring our services endpoints and providing automatic failover when an endpoint goes down.



  • Improve responsiveness for high-performance applications

Azure allows you to run cloud services or websites in datacenters located around the world. Traffic Manager improves application responsiveness by directing traffic to the endpoints with the lowest network latency for the client.



  • Perform service maintenance without downtime

We can perform planned maintenance operations on our applications without downtime. Traffic Manager directs traffic to alternative endpoints while the on-going maintenance .



  • Combine on-premises and Cloud-based applications

Traffic Manager supports external, non-Azure endpoints enables it to be used with hybrid cloud and on-premises deployments, including the “burst-to-cloud,” “migrate-to-cloud,” and “failover-to-cloud” scenarios.



  • Distribute traffic for large, complex deployments

Traffic manager use the nested Traffic Manager profiles, traffic-routing methods so it can be combined to create sophisticated and flexible rules to support the larger &  more complex deployments.

Create the Azure Traffic Manager :–

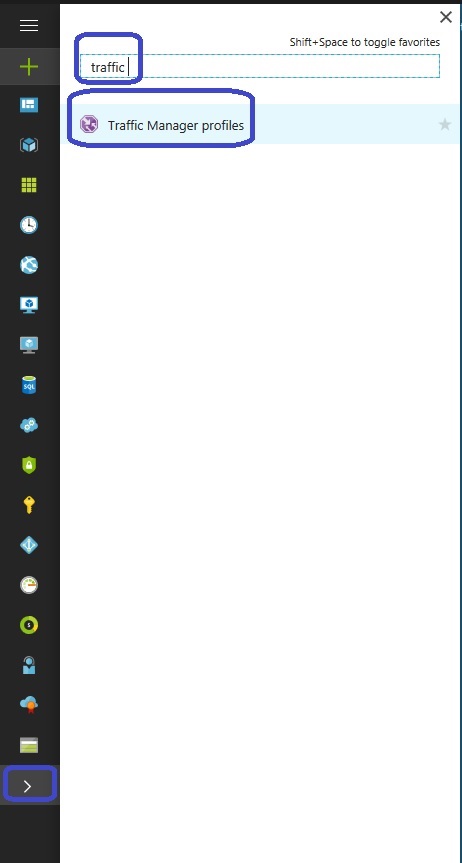

  • Click on Search
  • Search Traffic Manager
  • Select Traffic manager
  • Add Traffic Manager

Traffice manager2

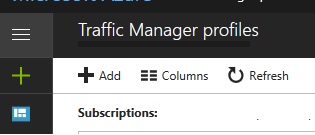

Click on Add Buttons

Traffice manager3

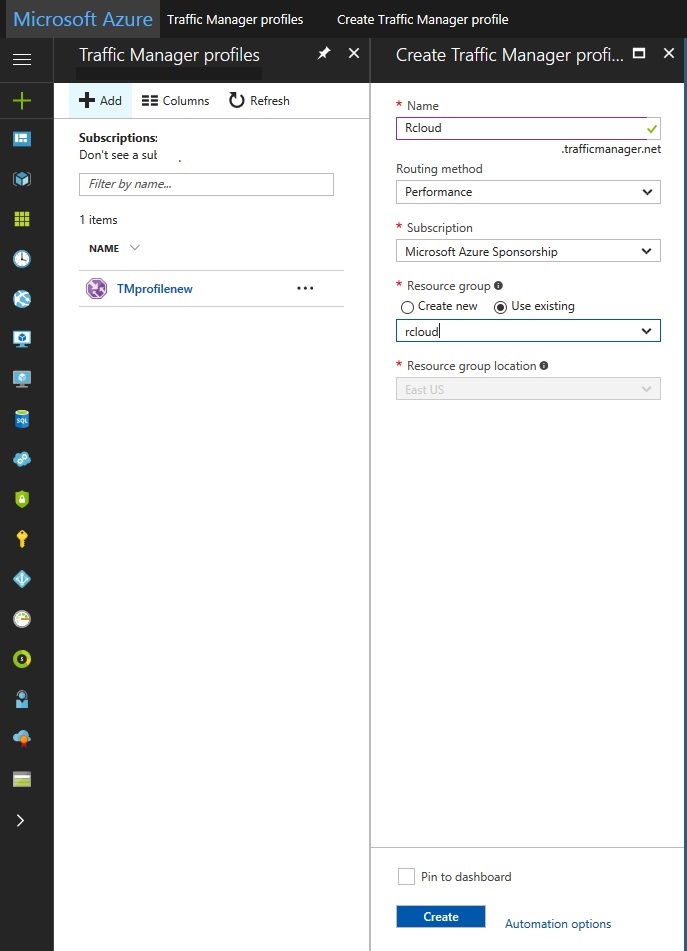

Provide the Traffic Manager name :

Routing method : Select the Routing method as per o your organization Requirements.

  • Performance Method

Performance traffic routing method allows you to direct traffic to the endpoint with the lowest latency from the client’s network

  • Weighted Method:

Common traffic routing method pattern is to provide a set of identical endpoints, which include cloud services and websites, and send traffic to each in a round-robin fashion

  • Priority Method:
  • It is use for website mode, As Azure Websites already provides failover functionality for websites within a datacenter (also known as a region). Traffic Manager provides failover for websites in different datacenters.
  • Geographic Method

Geographic traffic routing method allows you to direct traffic to specific endpoints based on the geographic location where the requests originate

Then click on Create. Once the Traffic manager is created select the traffic manager and see the properties.

Traffice manager4

Overvices:

This Tab will show you how and where your traffic manager services are deployed .

  • Resource Group
  • DNS server
  • Subscription
  • Routing method etc

overview

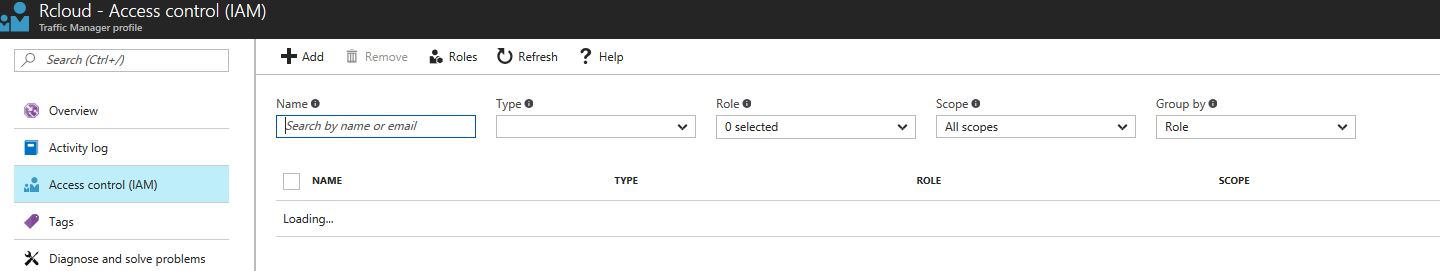

Access Control (IAM) :

It is Role based access authentication for Traffic manger , If you want someone from you team to manage the Azure traffic Manager or you want to restricts the access to other department that you want to  add that user in IAM and limited the access to particular user.

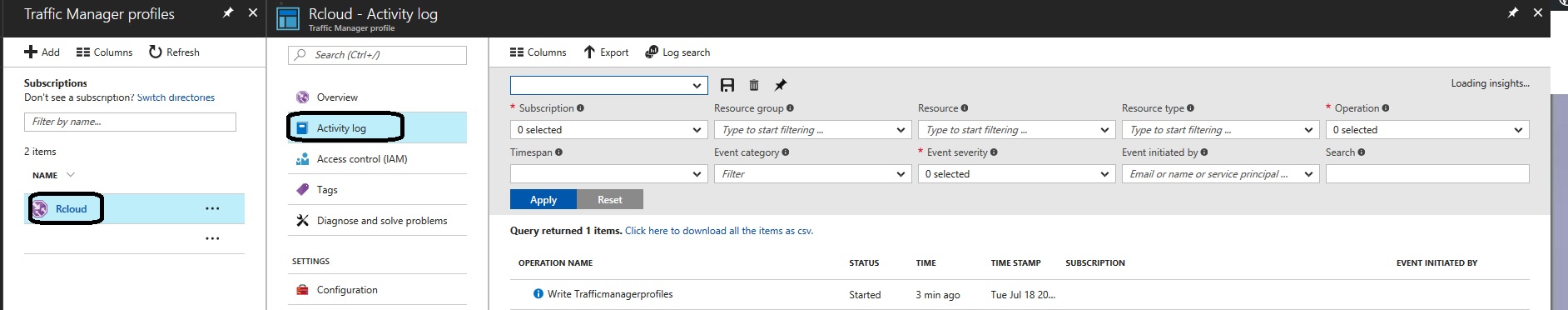

Activity Log:

It will show the traffic manager activity logs which will help us to manager traffic manager incase it is not working.

Activity Logs.jpg

Tags:

Tags are name/value pairs that enable you to categorize resources and view consolidated billing by applying the same tag to multiple resources and resource groups

Tags

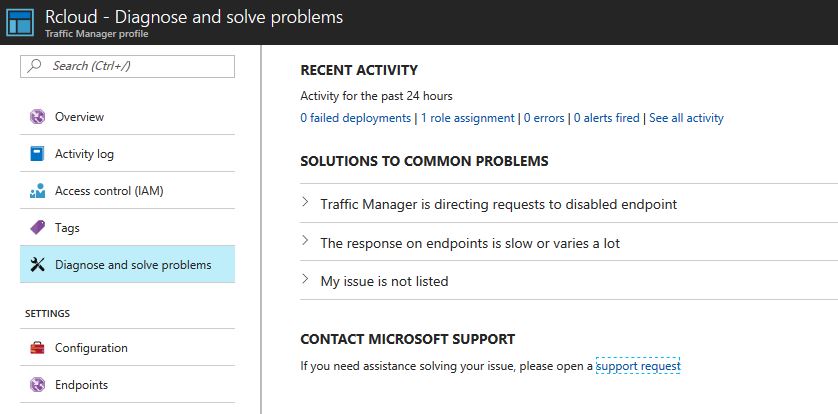

Diagnose and Solve Problems

This will help us to analyze the issue and provide link which will help us to troubleshoot the Traffic manager related issue.

Diagnostics and solve problem

Configuration

Configuration tab will show how you have configured the traffice manager and you can change the setting as per your requirements.

Performance : We can use this method when our endpoints are deployed in different geographic location, and you want to use the one with the lowest latency.

Priority: We can use this method when we want to select an endpoint which has highest priority and available

Weighted: We will use the method when we want to distribute traffic across a set of endpoint as per the weights provided.

DNS TTL :The Value controls how often the clients local caching name server will query the traffic manager system for updated DNS entries. Any changes that occurs with traffic manager such as traffic routing method changes or changes in the availability of added endpoints .IT will take this period of time to be refreshed throughout the global system of DNS server.

Endpoints: Traffic manager Can monitor your services to ensure they are available for monitoring to workforces, We must set it up the same way for every endpoint with in this profile.

We can specify the protocol ,the post and the relative path. Traffic manager will try to access the file specified in the relative path via the defined protocol and port too check for uptime.

Port: Port number of the services.

Path: Define the path of the services.

Probing Interval:-Configure the time interval between endpoints health probes.

Tolerated Number of Failure: Configure the number of health probe failures tolerated before an endpoint failure is triggered you can enter a number between 0 and 9

Probe Timeout :- Configure the time required before an endpoint health probe time out. The value must be at least 5 and smaller than the probing interval value.

configuration

Traffic manager Endpoints

Click on the Add Tab

Add the Endpoints which you want to create based on your services and as per your organization requirements.

Below are the 3 traffic Endpoints.

  • Azure endpoints are used for services hosted in Azure.
  • External endpoints are used for services hosted outside Azure, either on-premises or with a different hosting provider.
  • Nested endpoints are used to combine Traffic Manager profiles to create more flexible traffic-routing schemes to support the needs of larger, more complex deployments.

Please provide the Name Of the Endpoint.

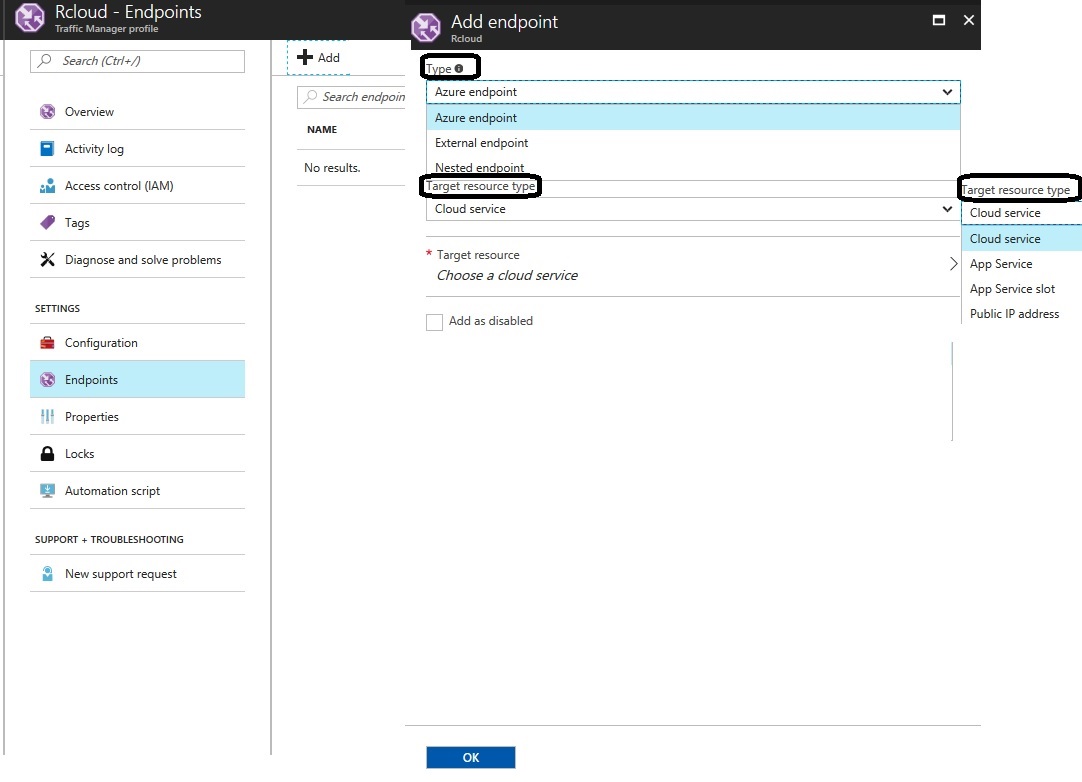

Targeted Resources: Select the below Services where we want to enable the Traffic manager endpoints.

Cloud Services: This services basically used in Classic deployment model.

App Services : If you want to apply the traffic manager for your web apps you can try here.

App Services Slot : It is basically used for azure web apps slot like testing/Dev etc environments.

Public IP address : Traffic manager can be applied on Public to address when ever traffic is more in public ip it will route the traffic based on your configuration.

cccc

Properties:

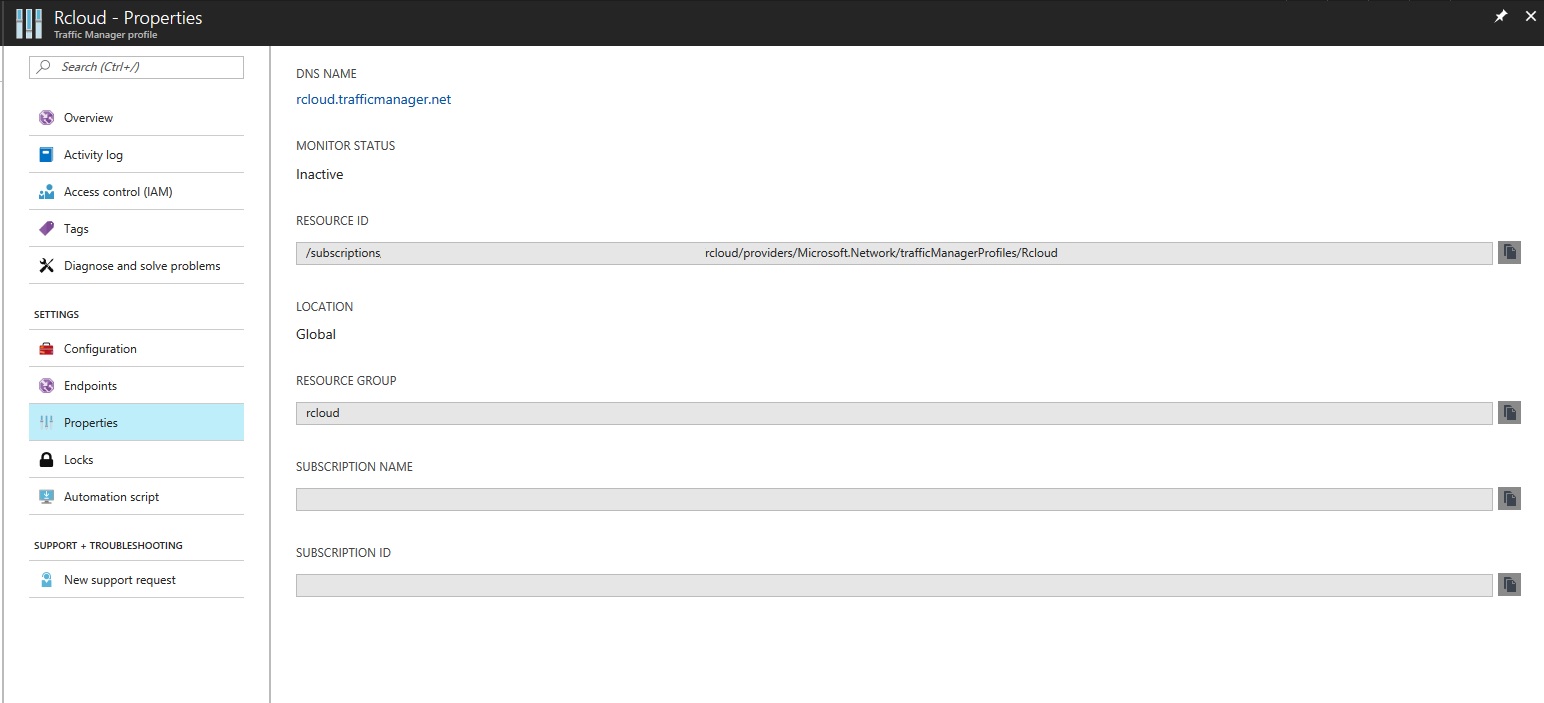

Properties is something where you can found all the resource related information.


Lock

Add Lock is something where you can remove the access to delete the access or Provide the read only access.

Add locks

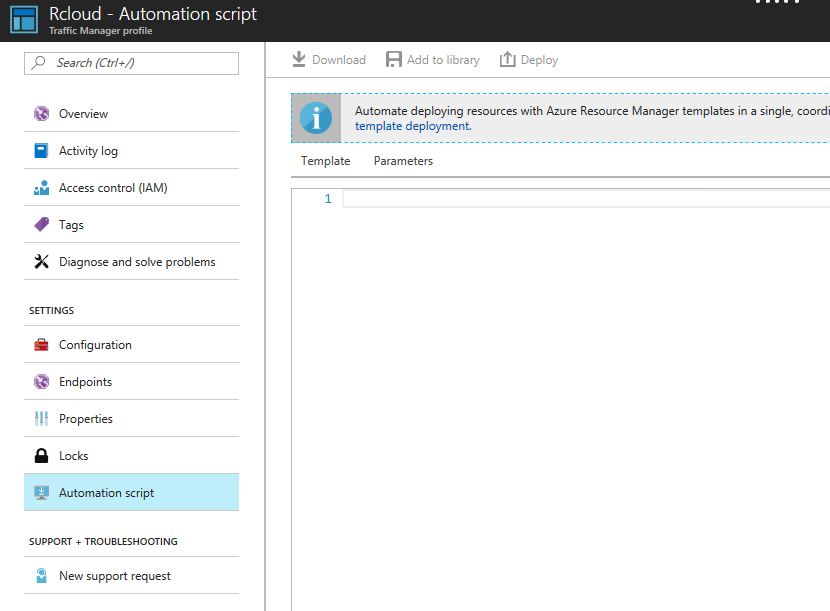

Automation

This can be used for automated the traffic manager creation and configuration.

automation
