Connect On premise with RAAS



RRAS Server setup and  Configuration for Site to Site connection

Please connect RAAS server you want to configure the Site to site VPN connection using the RAAS

Prerequisite:

Please go to the Ethernet card or NiC card network properties.

  • Unchecke  all the settings except for  TCP/IPv4 protocol.
  • Go to the properties of TCP/IPv4 and Select the properties.
    • IP Address
    • Gateway
    • DNS Servers

RAAS net1

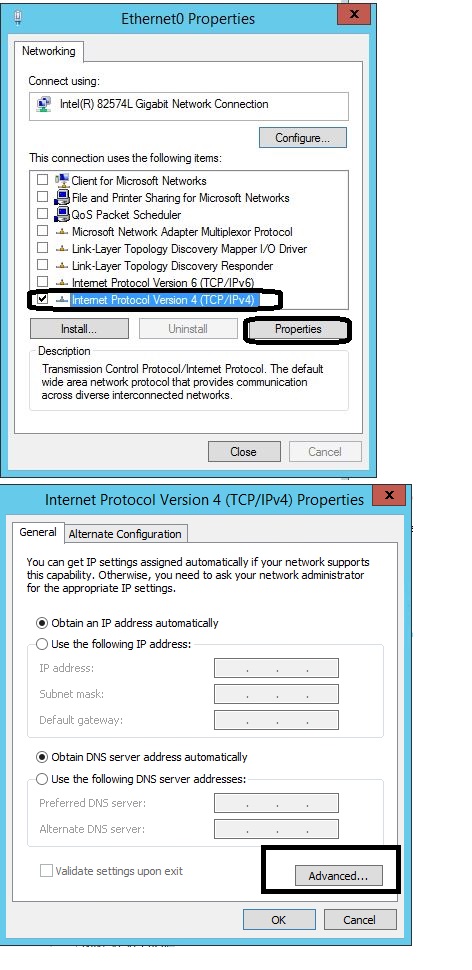

  • Select the  TCP/Ip V4 and Click on properties.
  • Thank click on advance



RAAS net2

  • Click on the WINS
  • Disable NetBIOS over TCP

RAAS net 3

  • Please install the Remote Access services in Server 2012 R2 ,2008,or 2016 Server as per your requirement.

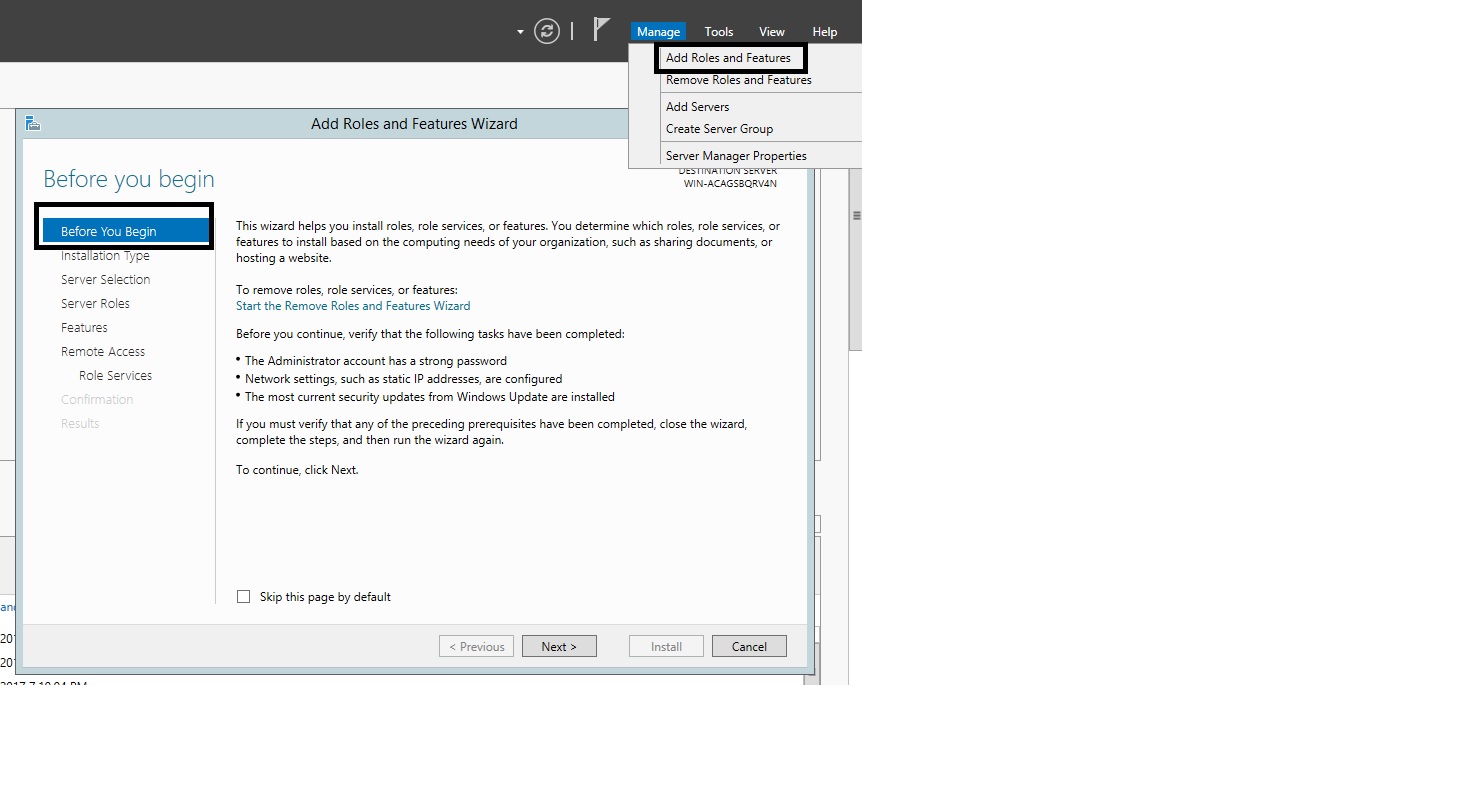

  • Open Server Manager. Select Manage -> Add Roles and Features.

On the Add Roles and Features Wizard ->Add Roles and Features.

  • Before You Begin: Click Next

RAAS1Installation Type: Role-based -> Click NextRAAS2

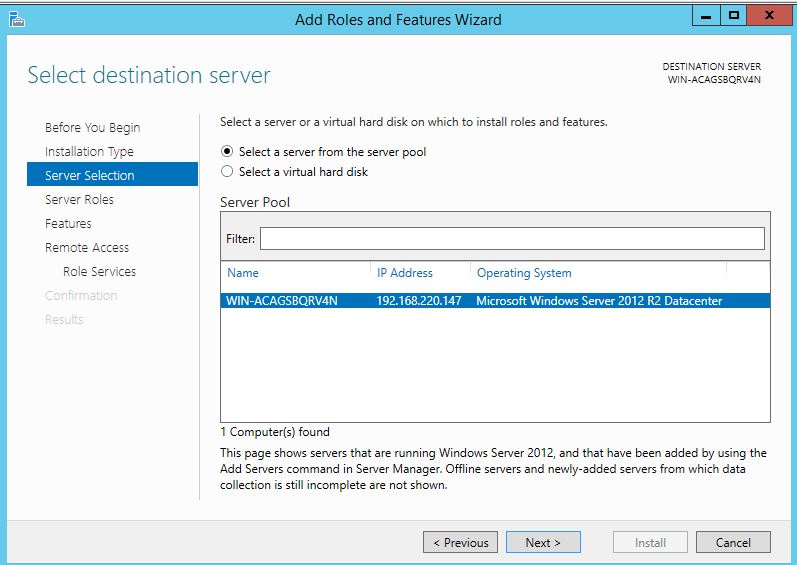

  • Server Selection: Select a server from the server pool -> RRAS-Server -> Click Next

RAAS3

  • Server Roles: Check Remote Access -> Click Next

RAAS4

  • Features: Click Next

RAAS5

RAAS6

  • Remote Access: Click Next
    • Role Services:
      • Direct Access and VPN (RAS)
        • Click Add Features on the pop-up window
      • Routing
      • Click Next
  • Web Server Role (IIS): Click Next
    • Role Services
      • Accept Defaults: Click Next

RAAS7

Web server Role will Install automatically with Remote access services.

RAAS8



RAAS9

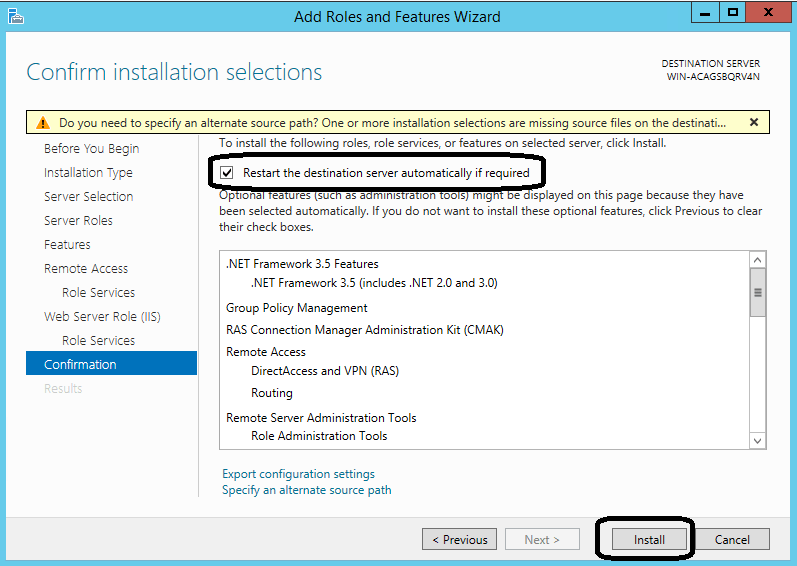

  • Confirmation: Click Install

RAAS 10

Once it is Install  Pleas close the setup.

Open the Routing and Remote Access Server Setup Wizard

Routing and remote 1

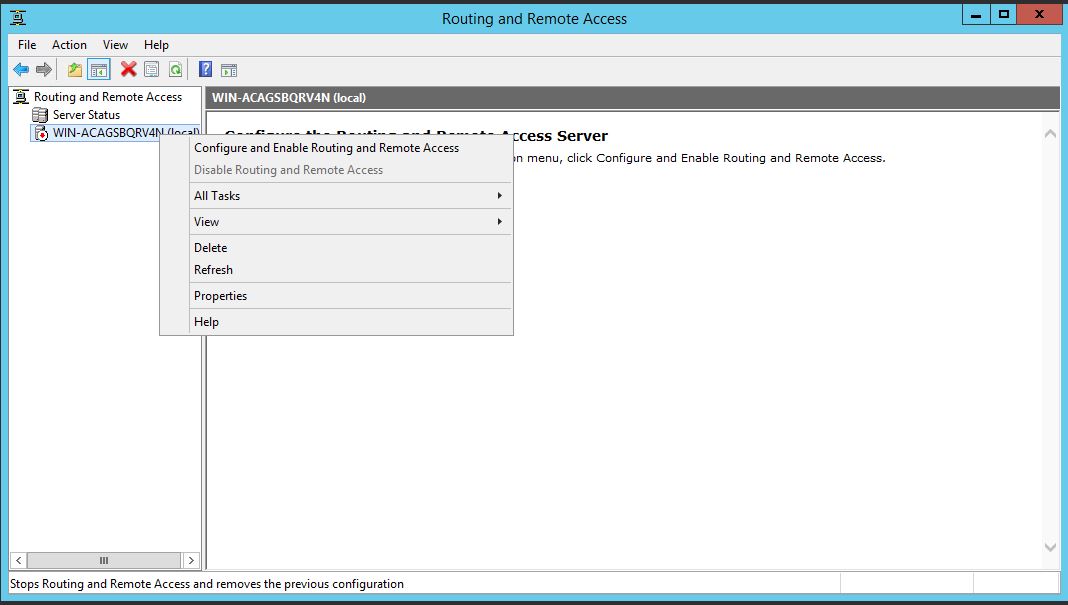

  1. Configure and enable Routing and Remote Access

remote and routing 3

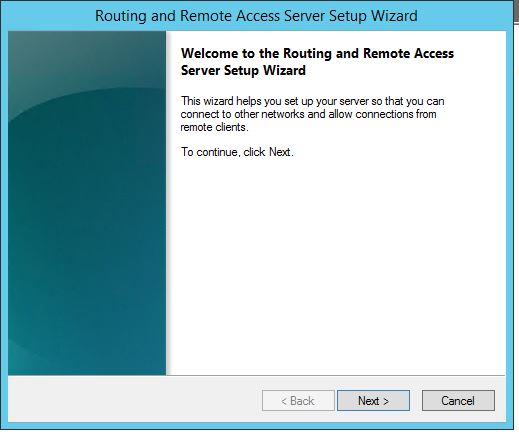

Once you will click configure and enable routing Remote access you will get welcome wizard.

Routing and remote 4

Click on Secure Connection between 2 private network.

Routing and remote 6

Demand Dial Connection Click Yes

routing and remote 7

Assign Address Automatically

routing and remote 8

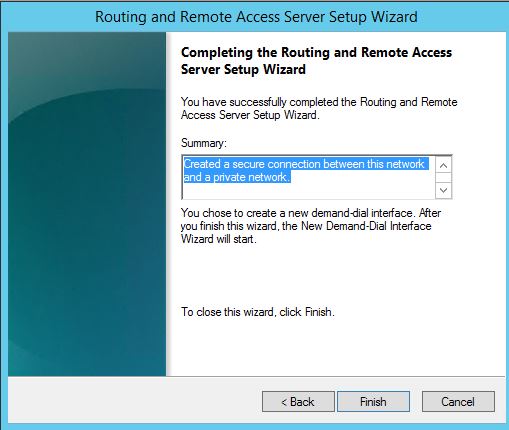

Completing the Routing and Remote Access Server Setup Wizard: Click Finish

routing and remote 9

The Demand-Dial Interface Wizard will appear.

  1. Welcome to the Demand-Dial Interface Wizard: Click Next

deman-Dial in 1

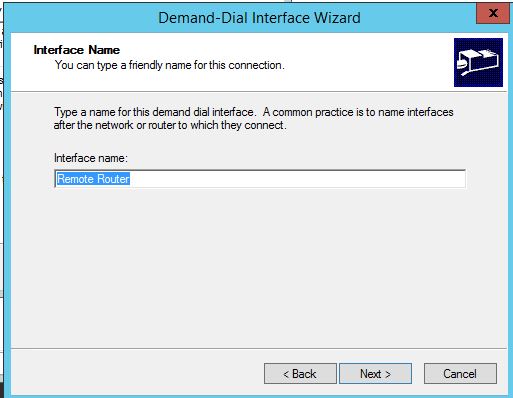

Interface Name: Type in Remote access  or As per your organization standard Name , click Next

deman-Dial in 2

Connection Type: Select Connect using virtual private network (VPN), click Next

deman-Dial in 3

VPN Type: Select IKEv2, click Next

deman-Dial in 4

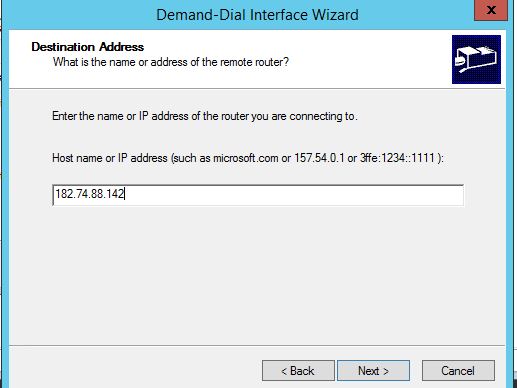

Provide the Virtual network gateway Public IP address which is required to connect to azure network.

deman-Dial in 5

Select Route IP Packets on this interface.

deman-Dial in 6

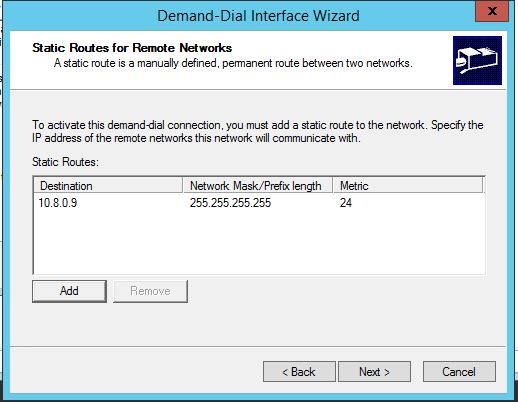

Provide the IP address range of your azure VNet configuration so it will start using you Vnet configuring

deman-Dial in 7

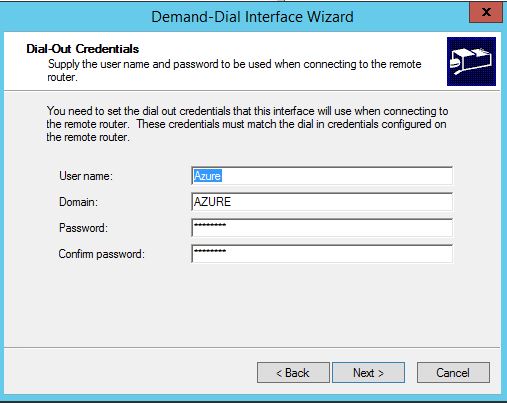

Provide Azure Connection Shared key (PSK) for authentication.

deman-Dial in 8

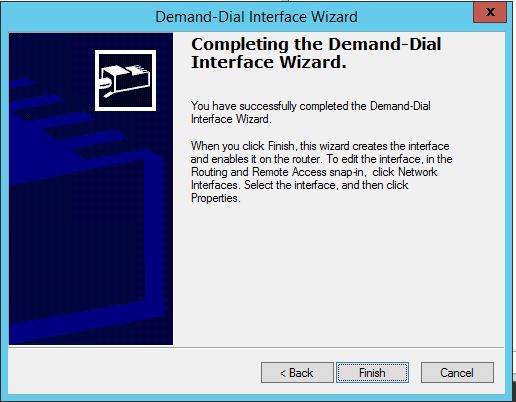

Finish the setup.

deman-Dial in 10



Site to Site VPN connection Setup  and Configuration

  • Please longing to Azure Portal
  • Click on Networking –> Click on connection
  • Select the Basic Configuration:
  • Provide the connection Type: Site to Site (IPSec)
  • Subscription Name:
  • Resource Group name
  • Location of your Vnet

connection 1

Please Select the gateway which you have created in Same Region.

Second virtual network Gateway is your local network Gateway select the same.

Please Provide the connection name

Please provide the shared access key to use to provide in you RAAS server to authenticate the Site to site VPN connection.

connection4

Once this is done , Please check and verify the connection:

Check The Status : It should Be connected not connecting

Check the Data in and out it should not be in one way data in or out. Then there is some configuration need to re-verify of your connection will not established.

connection 10

Now Enjoy useing your On-premises connectivity to azure and do more testing for learning purpose & it is not f
